Original file(1,395 × 1,322 pixels, file size: 2.51 MB, MIME type: image/png)

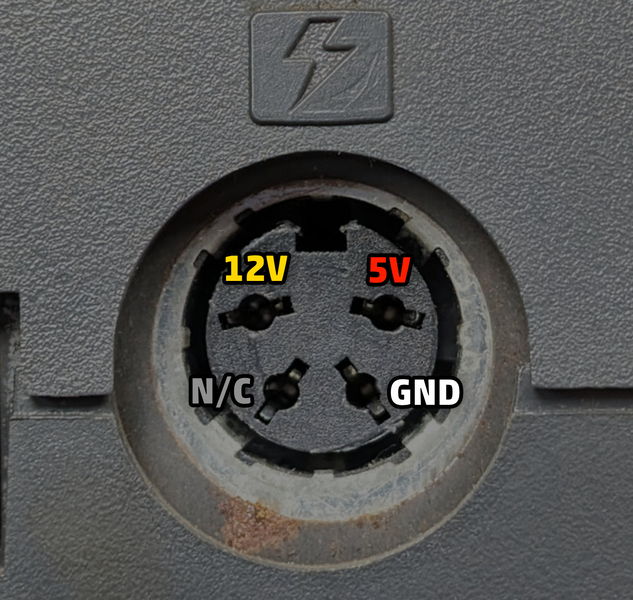

Commodore Amiga CD32 - Power Supply Pinout

File history

Click on a date/time to view the file as it appeared at that time.

Date/TimeThumbnailDimensionsUserComment
current18:24, 5 February 2026Thumbnail for version as of 18:24, 5 February 20261,395 × 1,322 (2.51 MB)Spongebob (talk | contribs)Fixed pinout. Old pinout is wrong and WILL FRY your CD32.

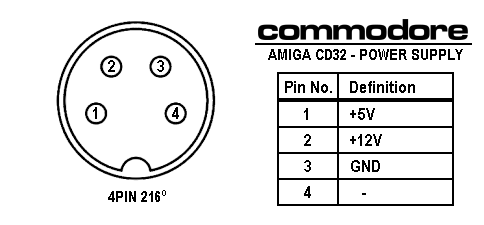

14:43, 12 May 2021Thumbnail for version as of 14:43, 12 May 2021484 × 225 (21 KB)Fredrik Nyqvist (talk | contribs)Commodore Amiga CD32 - Power Supply Pinout
